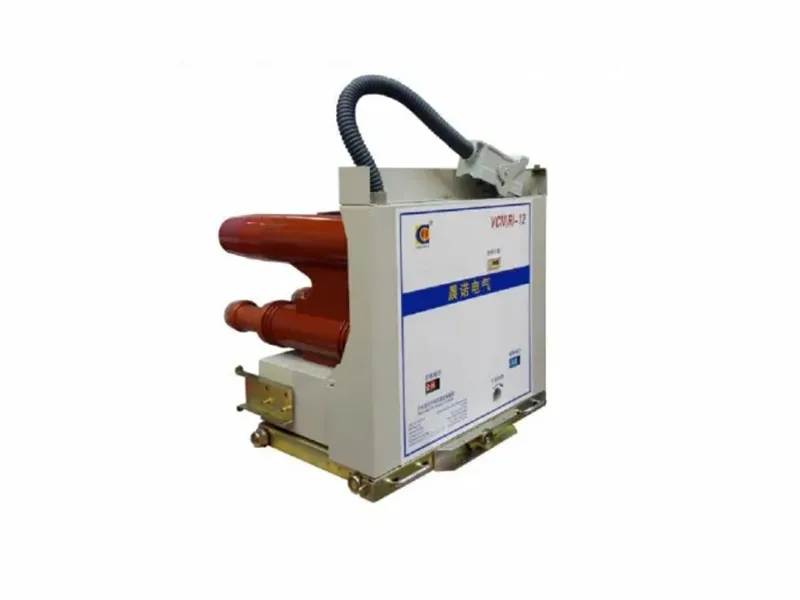

VCH series horizontal high voltage vacuum contactor
This series of horizontal high-voltage vacuum contactors is a new generation of vacuum contactors developed and designed by our company in combination with foreign advanced product technology and product inspection. The product has the characteristics of frequent operation, small cutoff current, low operating overvoltage, excellent mechanical characteristics, small size, etc. It is specially used for frequent switching of capacitors and can also be used as frequent start and stop control of motors. The product adopts streamlined design, with novel and beautiful appearance, which greatly improves the mechanical strength and insulation performance of the product, thereby further improving the reliability and stability of the product, and is a maintenance-free product.
Features: Capable of frequent operation, low cutting current, low operating overvoltage, excellent mechanical properties, and compact size.
Design: Streamlined design with a novel and aesthetically pleasing appearance.
Performance: Significantly enhances mechanical strength and insulation performance, further improving reliability and stability for a maintenance-free product.
Tech. parameters | Unit | Parameter | ||
Rated voltage of main loop | KV | 7.2 | 12 | |
1min Power-frequency withstand voltage | KV | 32 | 42 | |
Lightning impulse withstand voltage level | KV | 60 | 75 | |
Rated current of main loop | A | 160、250、400、630 | ||
Rated short-time withstand current | KA | 4/6.3 | ||
Rated peak withstand current | KA | October 16 | ||
Rated breaking times of the rated current | 10,000times | 25 | ||
Mechanical life | Permanent magnet type | 10,000times | 10 | |
Electrically retaining type | 10,000times | 25 | ||
Main loop resistance | (μΩ) | ≤150 | ||
Clearance between open contacts | mm | 6±1 | ||
Overtravel | mm | 2.5±0.5 | ||
Closing bounce | md | 25 | ||
Opening bounce | mm | ≤1 |
